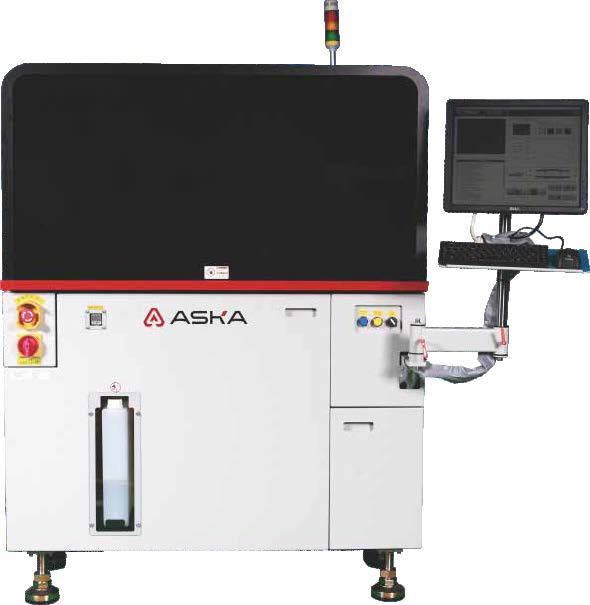

【Mini LED 錫膏印刷機】ASKA IPM-650mini -專為Mini LED錫膏印刷而設計
-高精度、高重現、高剛性、高穩定
產品詳細介紹
【Mini LED 錫膏印刷機】 ASKA IPM-650mini(全自動) Standard Features : ▶ Robust Platform and High Accurate Printing Table
▶ Windows 10 Based Operating System
▶ User Friendly Graphic interface
▶ Alignment Repeatability ±8㎛ and Printing Accuracy ±18㎛ @6Sigma
(PCB Fixed at machine – Camera XY move from origin to F1 and F2)
▶ Basic Cycle Time 9.0 Sec
▶ Built In Mechanical Repeatability Generating Software
▶ Easy Trouble-shooting by Error Message Guide
▶ Auto Positioning by Camera Stopper
▶ Auto Mark Recognition Regardless of Mark Shape and Size
▶ Easy Printing Pressure Control System
▶ Universal Supporting System for PCB Clamping
▶ Compatible with SMEMA Interface (IPC-SMEMA-9851) Function & Characteristic:
▶ Auto Mask Positioning by Squeegee Movement
▶ Motorized Printing Height Control
▶ Multi Speed Separation
▶ Multi Printing Speed
▶ Multi Mask Cleaning Speed
▶ Third Mark Checking to Protect PCB Reversing
▶ Sub Panel Mark Checking for balancing alignment tolerance
▶ Top Clamp Installed to Protect PCB Jumping
▶ Built In Vacuum Pump [Sharing PCB Clamping And Cleaning]
